UFACTORY xArm 6
Six-axis collaborative robot arm in aluminium and carbon fibre with a separate control box, open Python/C++ SDK and ROS packages.
Learn:Cobots vs industrial robots: what is the difference?Degrees of freedom and kinematics: how a robot arm reaches a pointInside a robot joint: motors, reducers and encodersAI in robots: perception, learned control and foundation models
Compare with other robots- Weight
- 12.5 kg
- Payload
- 5 kg
- Reach
- 700 mm
- Degrees of freedom
- 6

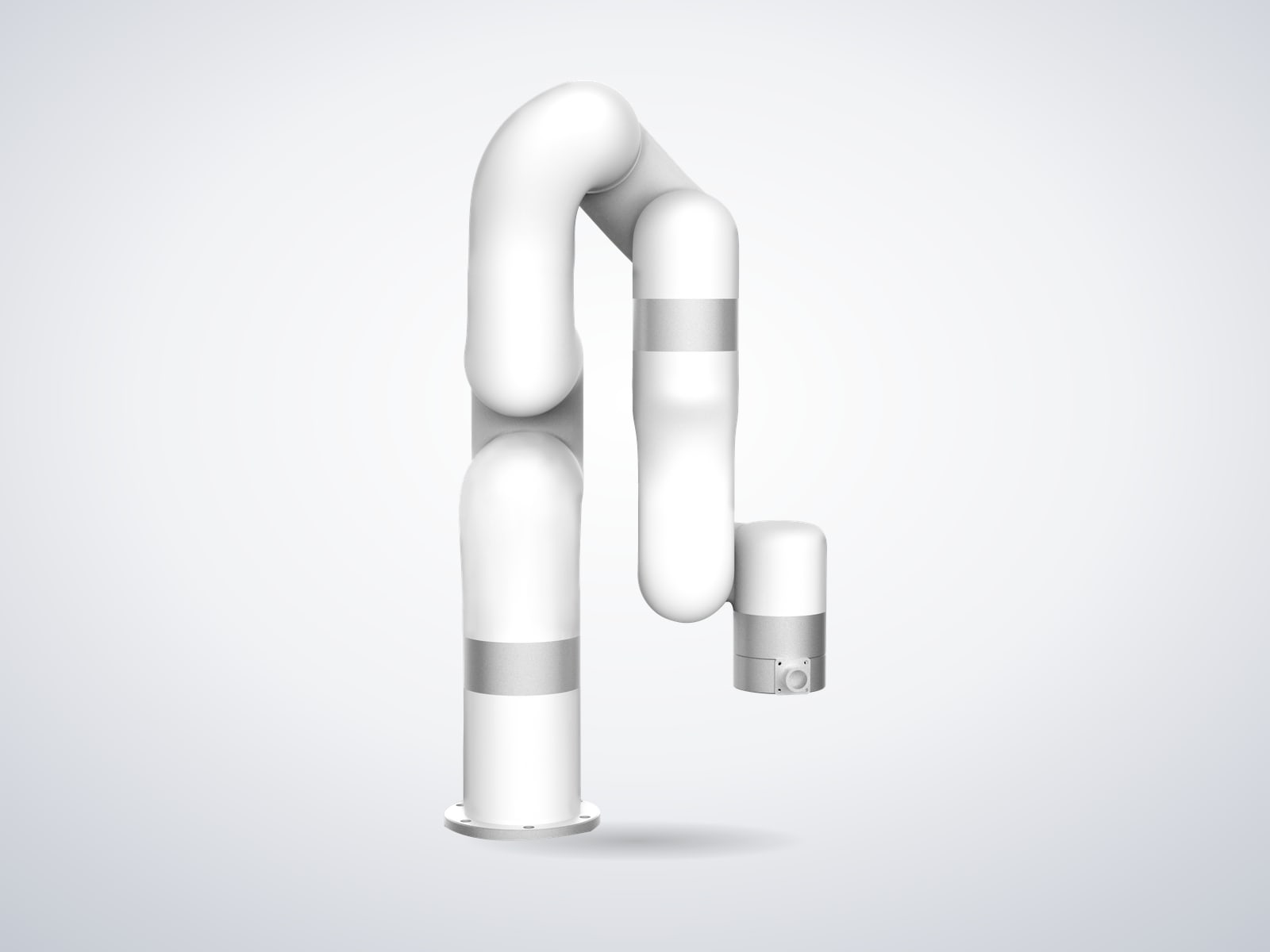

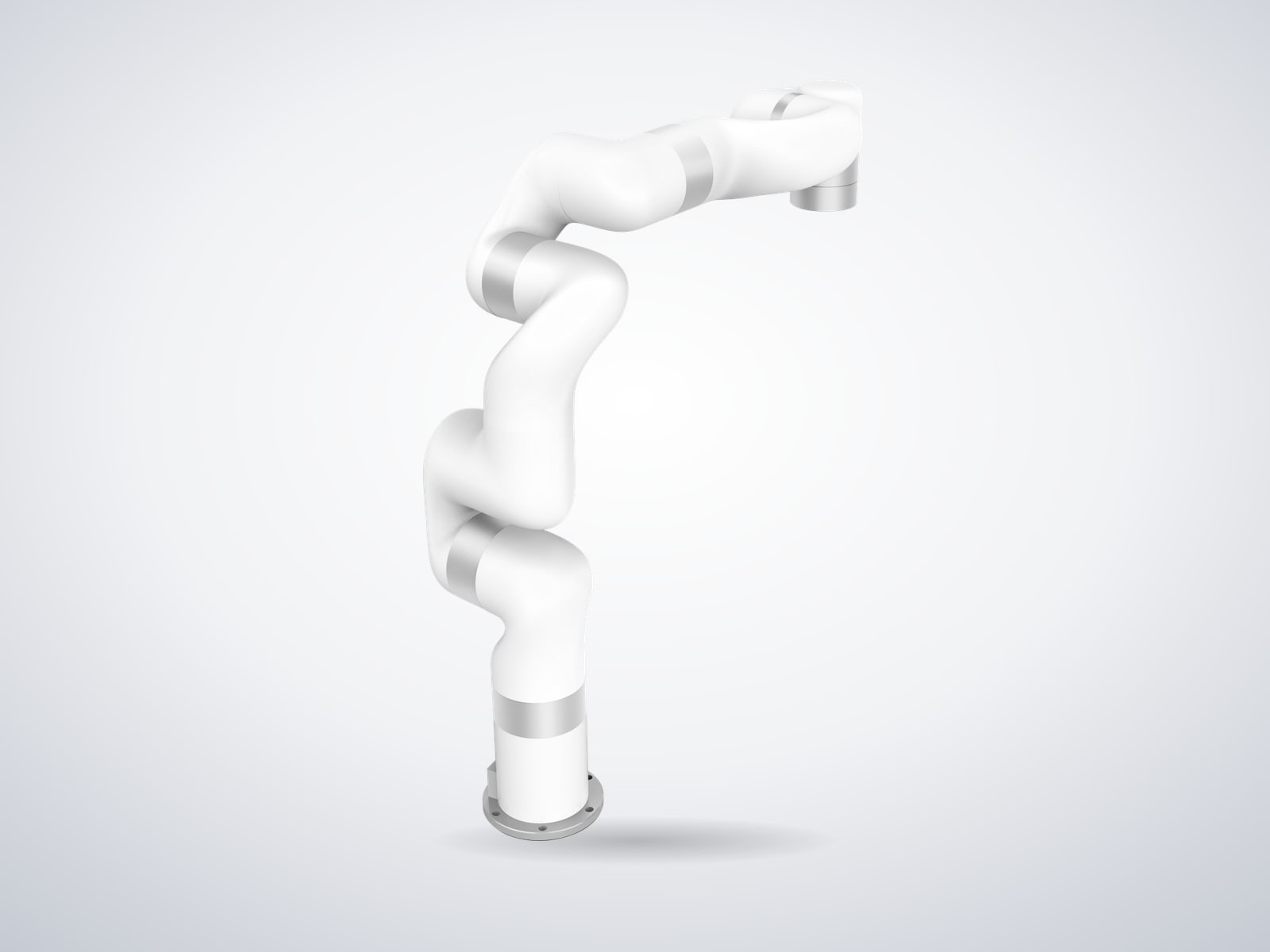

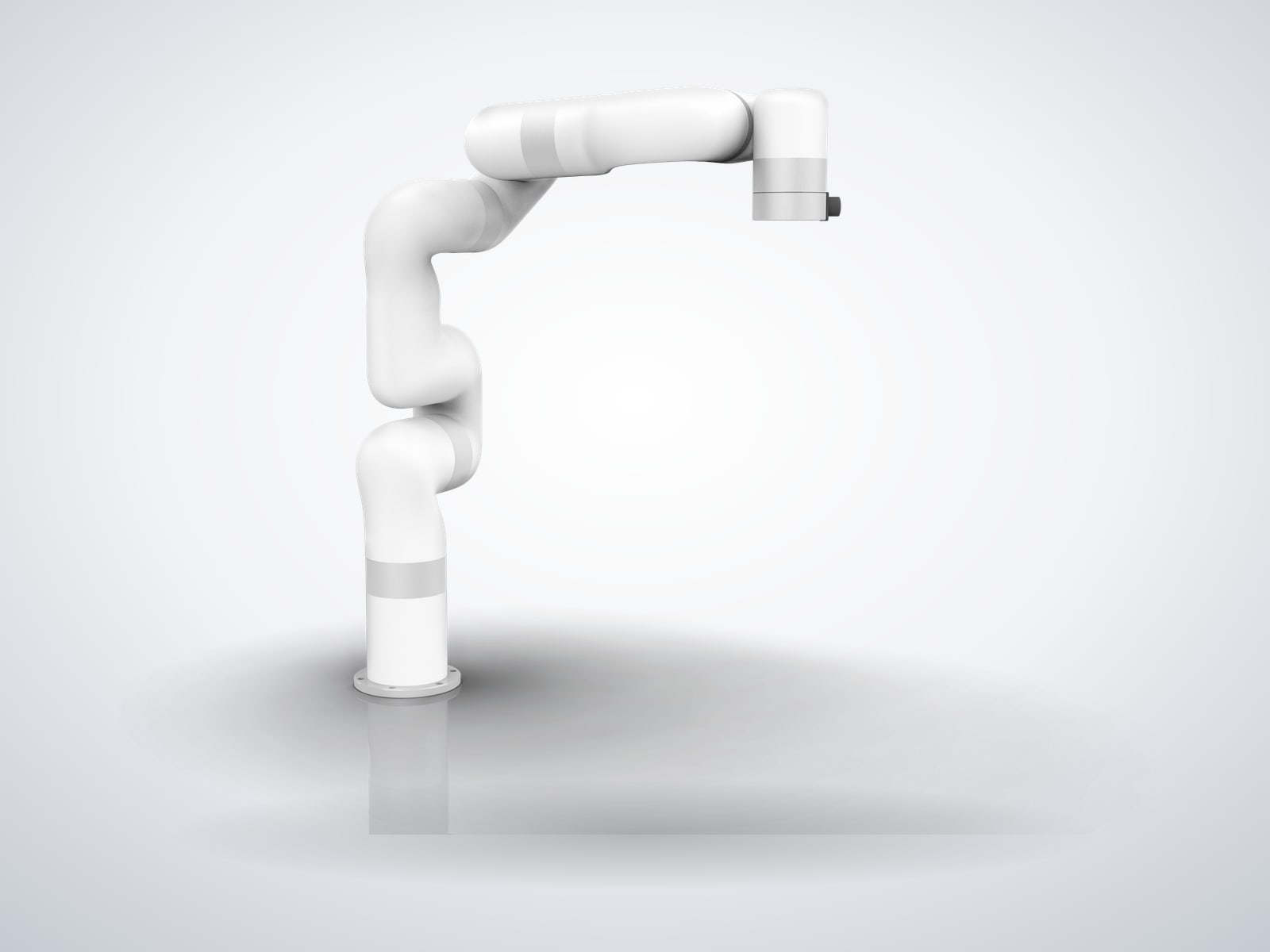

Photo: UFACTORY (opens in a new tab), Press photo
Photo: UFACTORY (opens in a new tab), Press photo
Photo: UFACTORY (opens in a new tab), Press photo
Photo: UFACTORY (opens in a new tab), Press photo

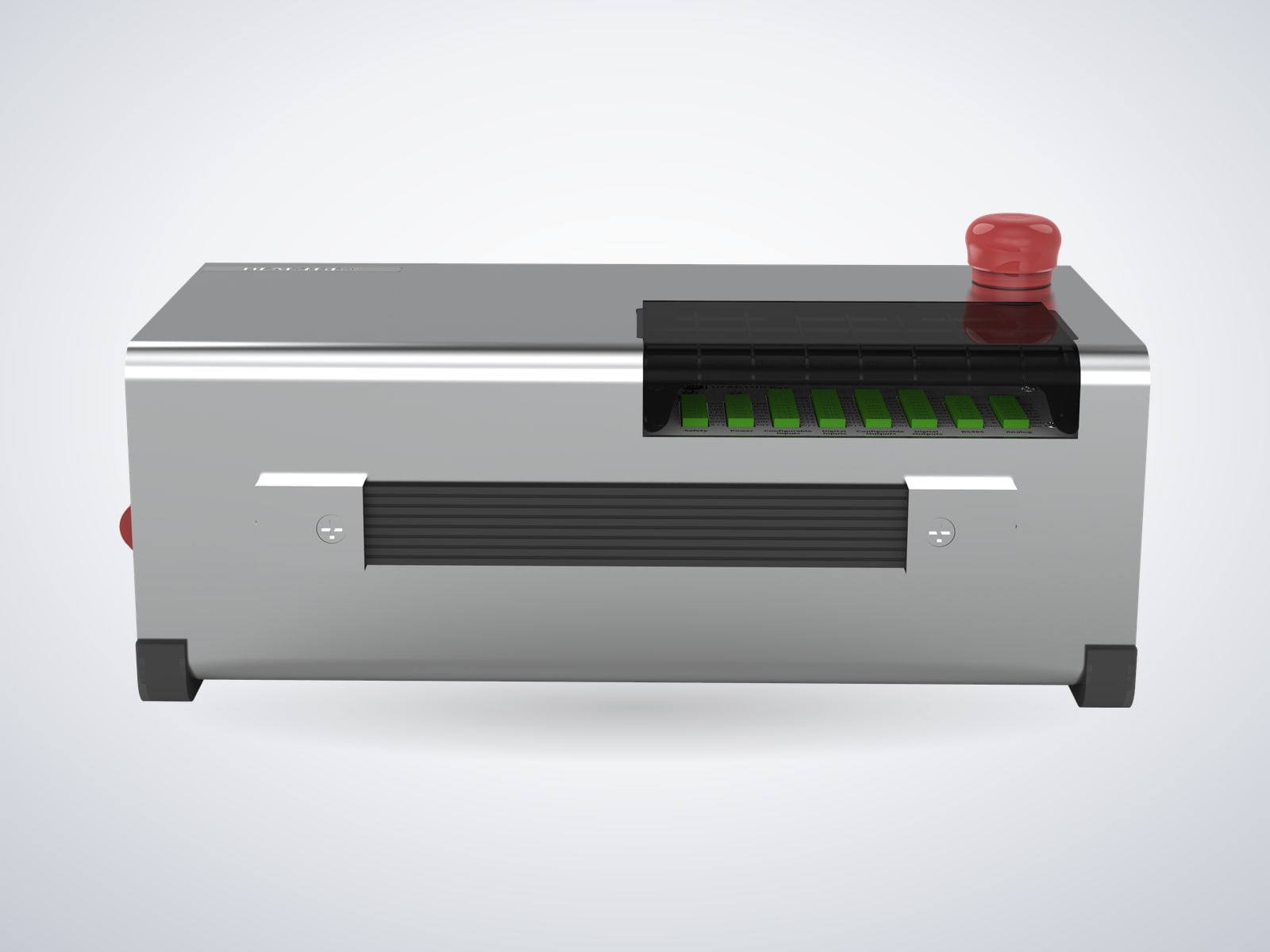

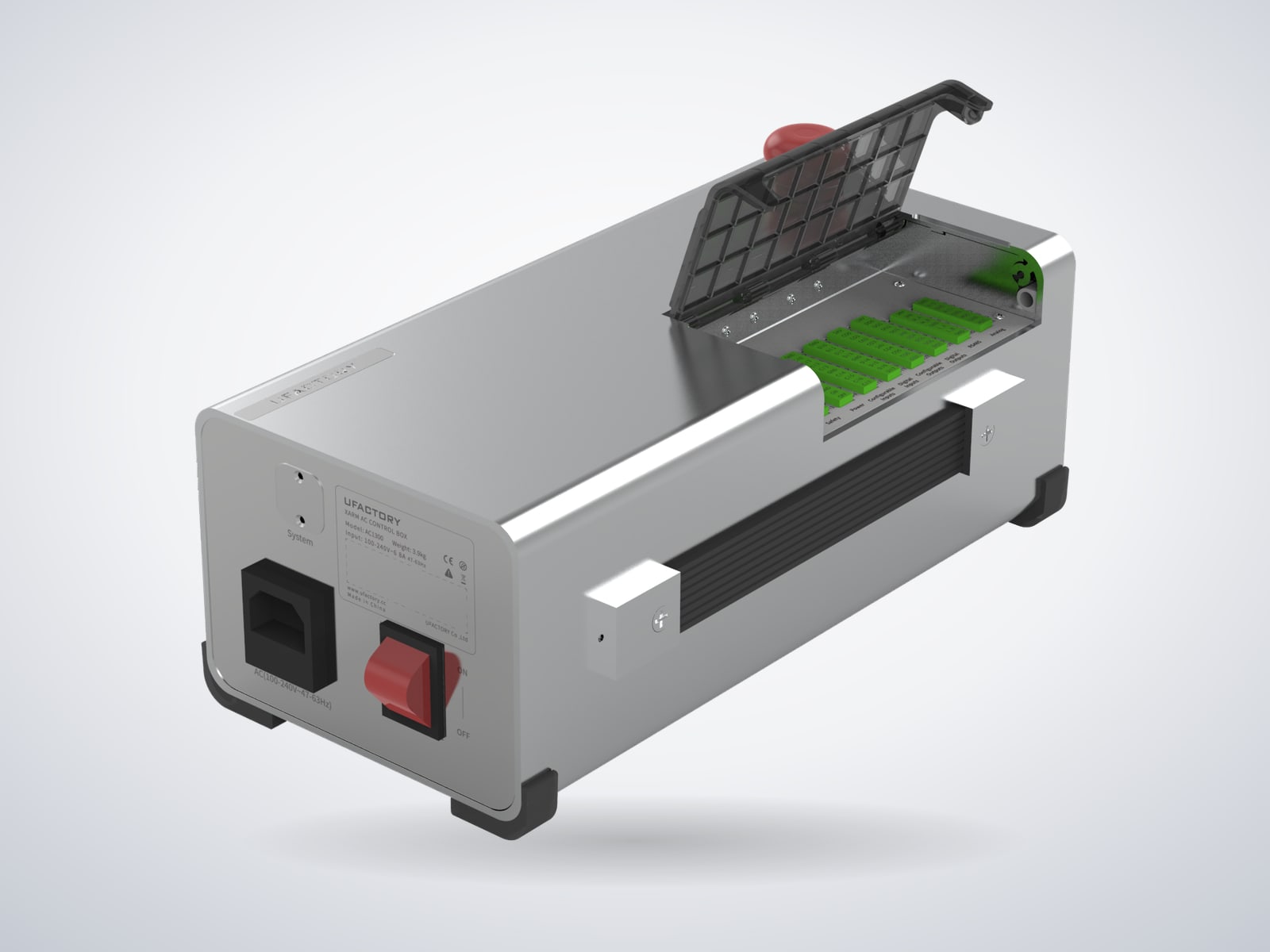

xArm AC control boxPhoto: UFACTORY (opens in a new tab), Press photo
xArm AC control boxPhoto: UFACTORY (opens in a new tab), Press photo

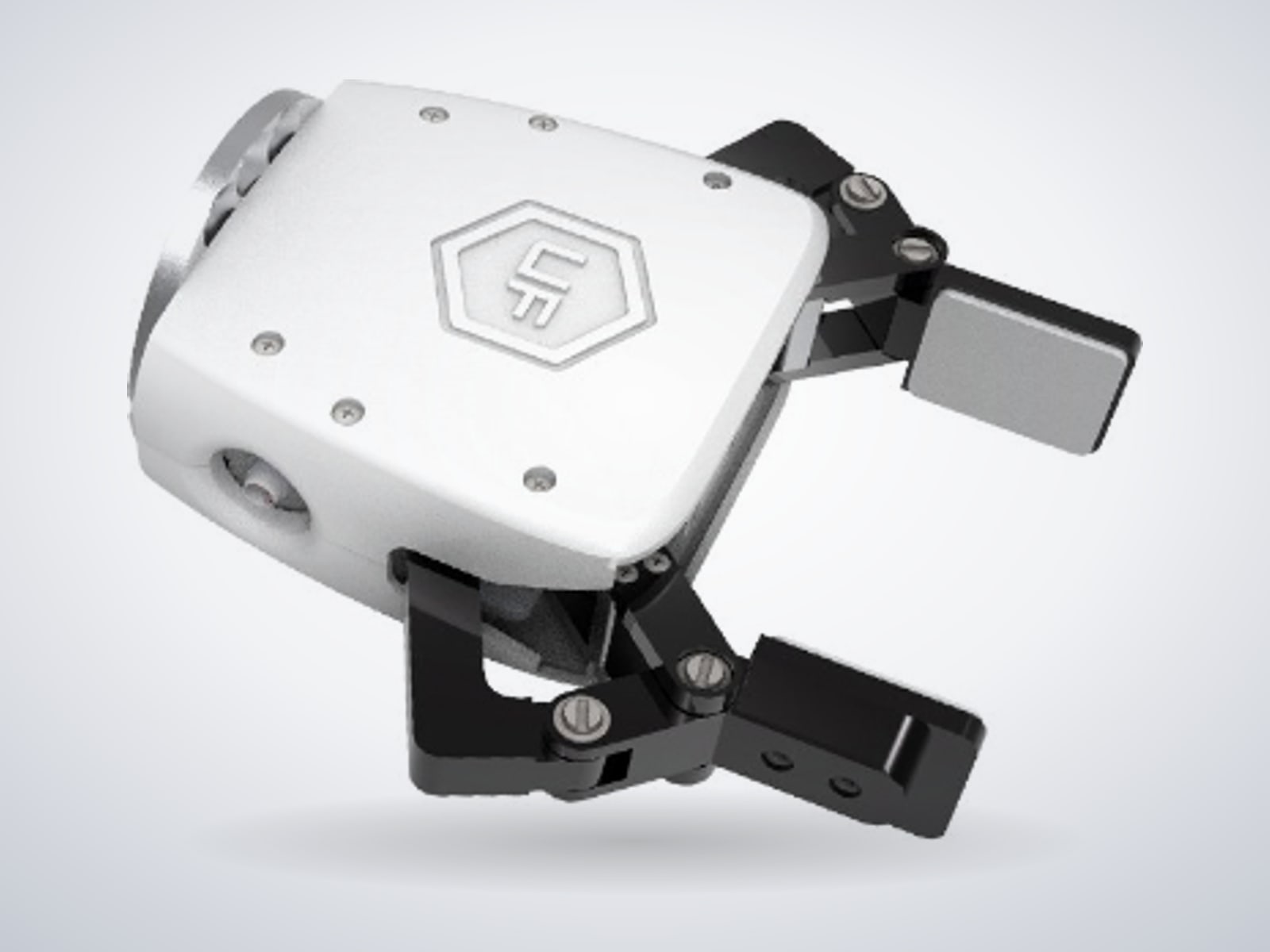

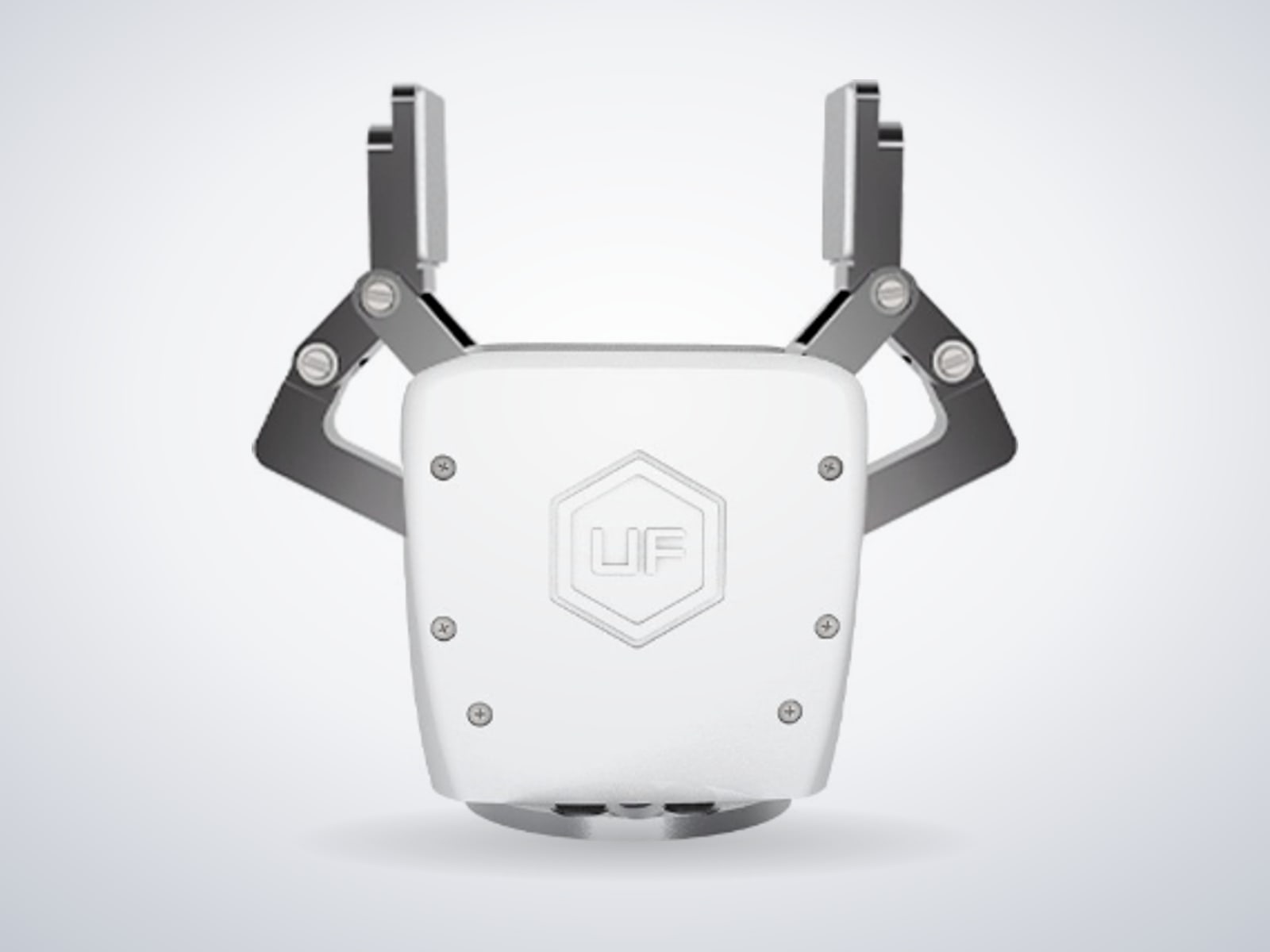

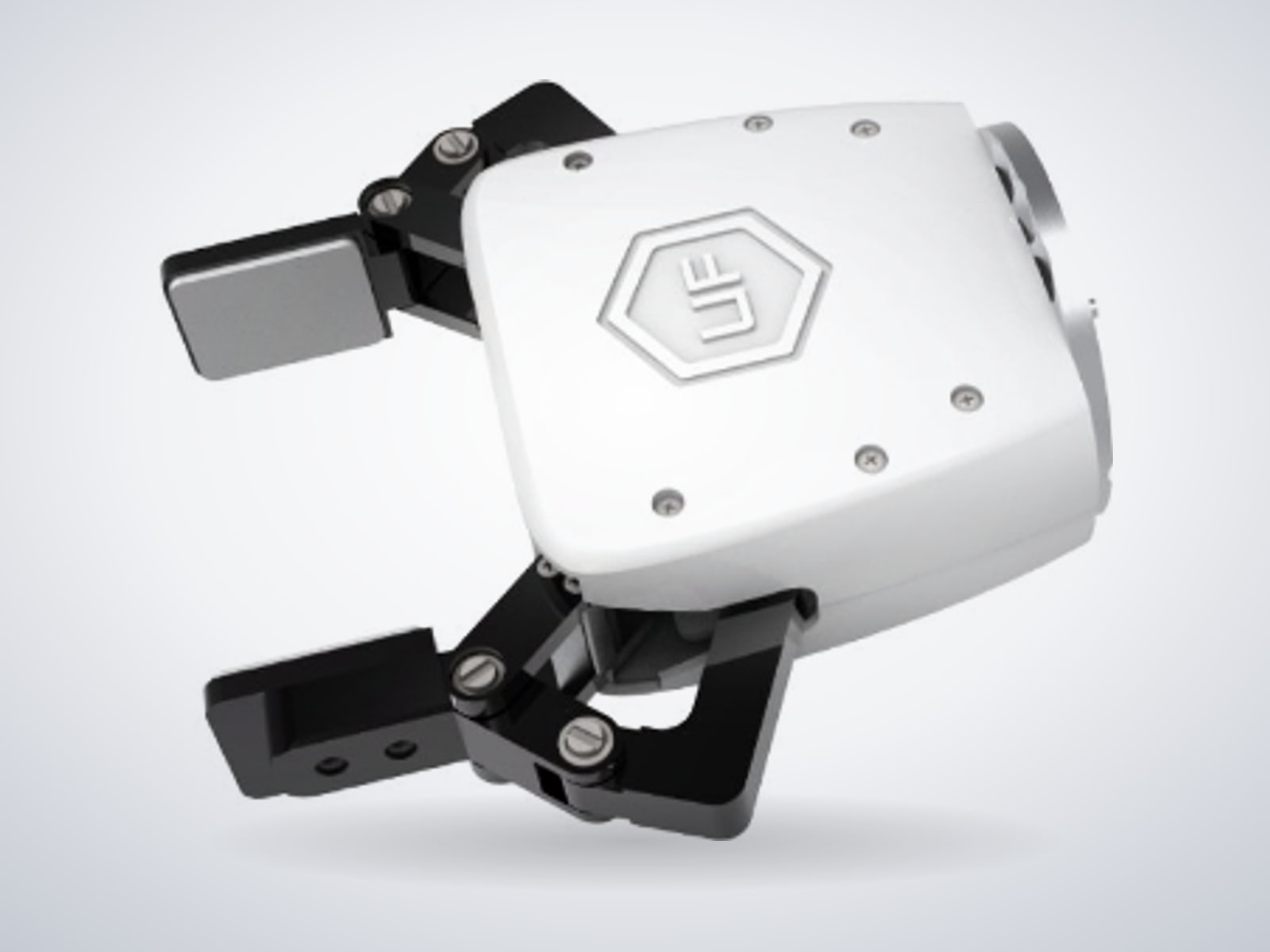

xArm Gripper (accessory)Photo: UFACTORY (opens in a new tab), Press photo
xArm Gripper (accessory)Photo: UFACTORY (opens in a new tab), Press photo
xArm Gripper (accessory)Photo: UFACTORY (opens in a new tab), Press photo

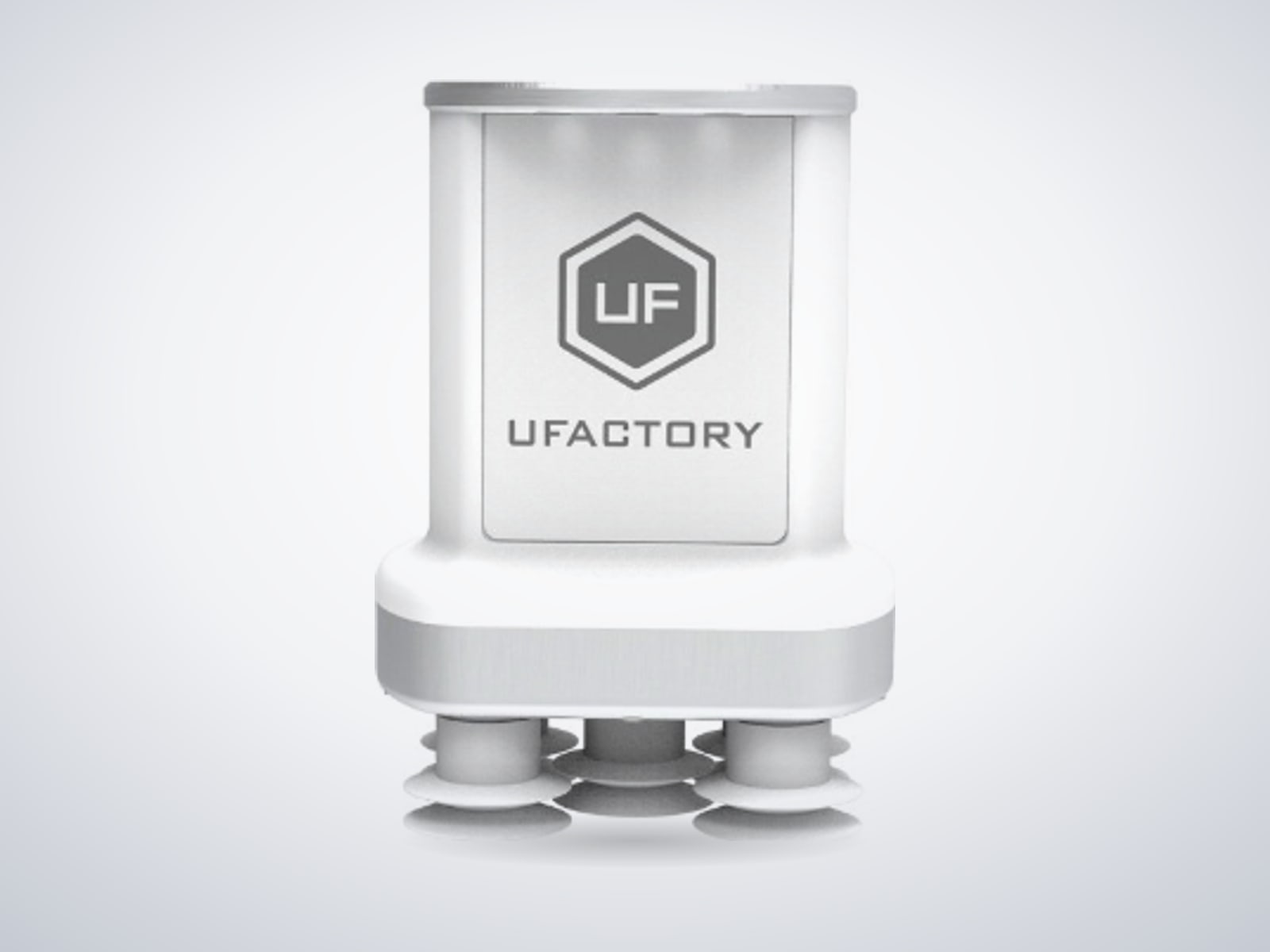

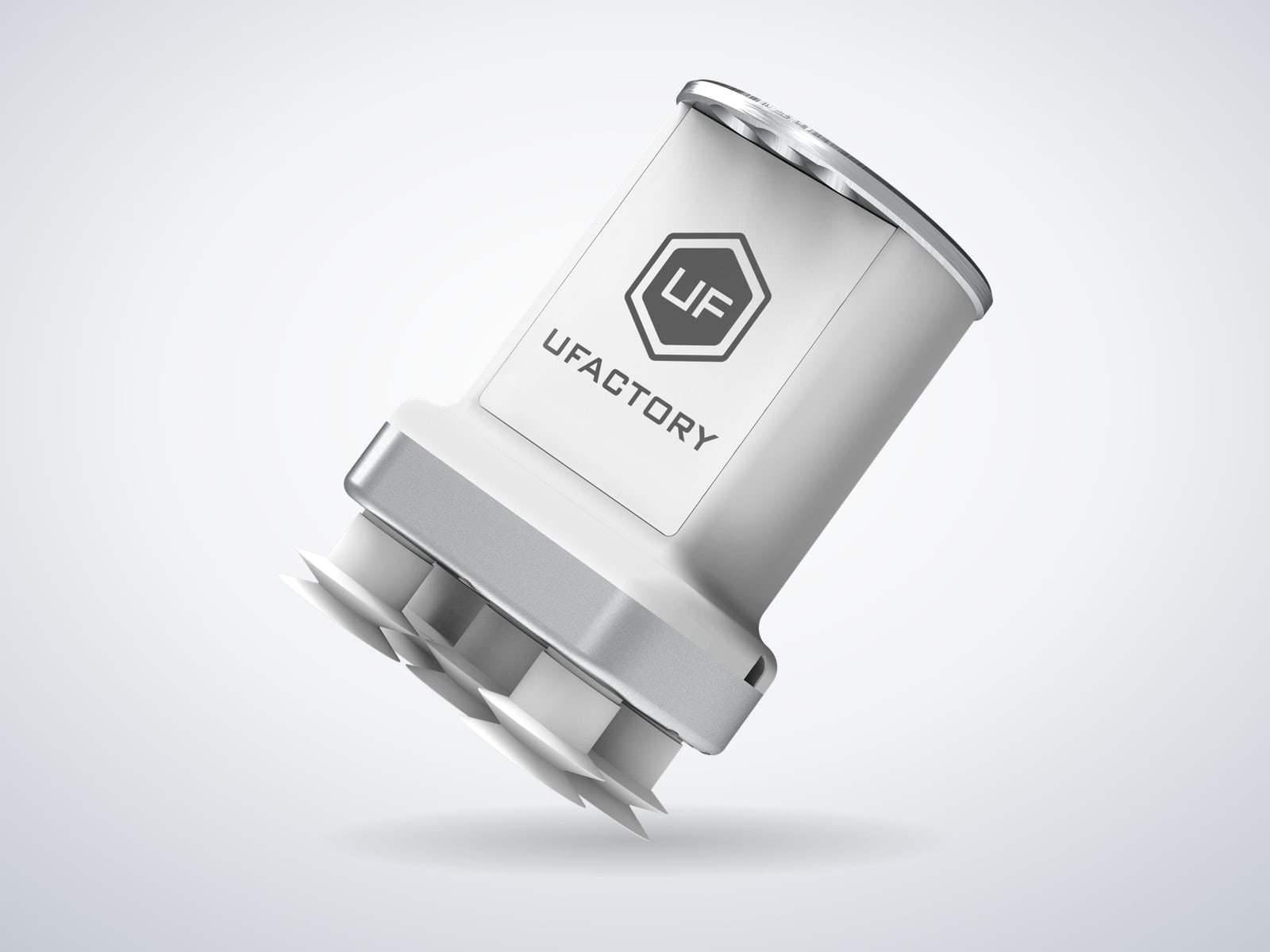

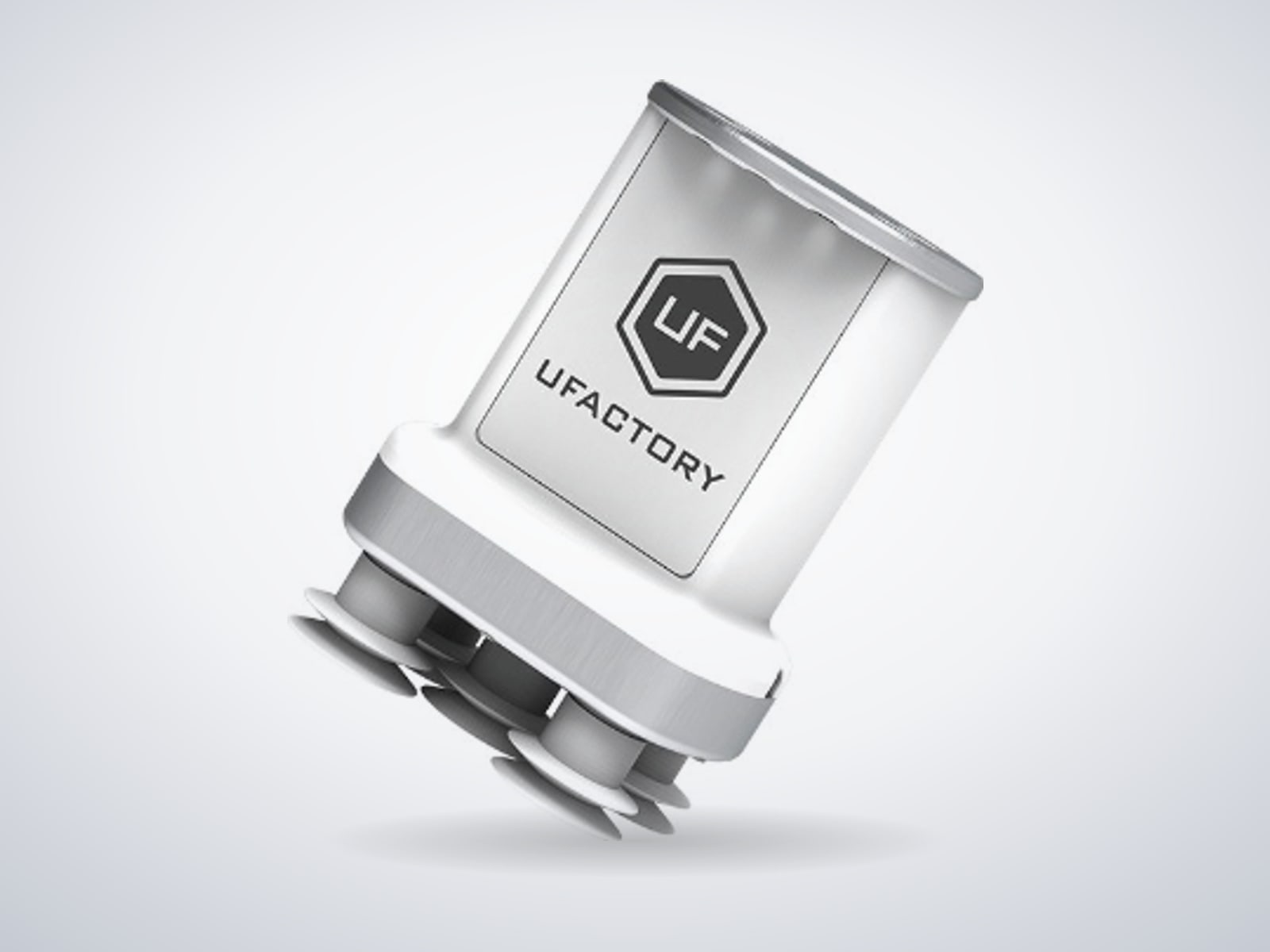

xArm Vacuum Gripper (accessory)Photo: UFACTORY (opens in a new tab), Press photo
xArm Vacuum Gripper (accessory)Photo: UFACTORY (opens in a new tab), Press photo
xArm Vacuum Gripper (accessory)Photo: UFACTORY (opens in a new tab), Press photo
Overview
- Release year
- 2018
- Country of origin
- China
- Official website
- ufactory.cc (opens in a new tab)
Technical specifications
Dimensions
| Specification | Value | Source |
|---|---|---|
| Weight | 12.5 kgrobot arm only | ufactory.cc (opens in a new tab)Sep 28, 2026 |
Performance
| Specification | Value | Source |
|---|---|---|
| Payload | 5 kg | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| Reach | 700 mm | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| Degrees of freedom | 6 | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| Repeatability | 0.1 mm±0.1 mm | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| Maximum speed | 1 m/smaximum TCP speed | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| Mounting | any | ufactory.cc (opens in a new tab)Sep 28, 2026 |
Power & battery
| Specification | Value | Source |
|---|---|---|
| Power consumption | 200 Wtypical; max 500 W | ufactory.cc (opens in a new tab)Sep 28, 2026 |
Environment
| Specification | Value | Source |
|---|---|---|
| Minimum operating temperature | 0 °Cambient | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| Maximum operating temperature | 50 °Cambient | ufactory.cc (opens in a new tab)Sep 28, 2026 |
Software
| Specification | Value | Source |
|---|---|---|
| ROS support | YesROS/ROS2 packages | ufactory.cc (opens in a new tab)Sep 28, 2026 |
| SDK available | Yesopen-source Python/C++ SDK | ufactory.cc (opens in a new tab)Sep 28, 2026 |
